This Surveyor guideline has been designed by
International to help you note the essential data that must be recorded when
you carry out your inspection in the drydock.
From your observations noted in the dock
you can complete the Inspection and Coatings Report or New building Report in
full, back in your office.
To assist you to collect the data for the Inspection
and Coatings Report, this aid outlines the key questions and contains the
illustrated standards and reference photographs.
Comments on Previous Coating performance, Surface Preparation,
Coating Application and Recommendations for next Dry-docking.
*This information is usually available
from Equasis or Class Society.
 |
Extent diagrams
|
 |

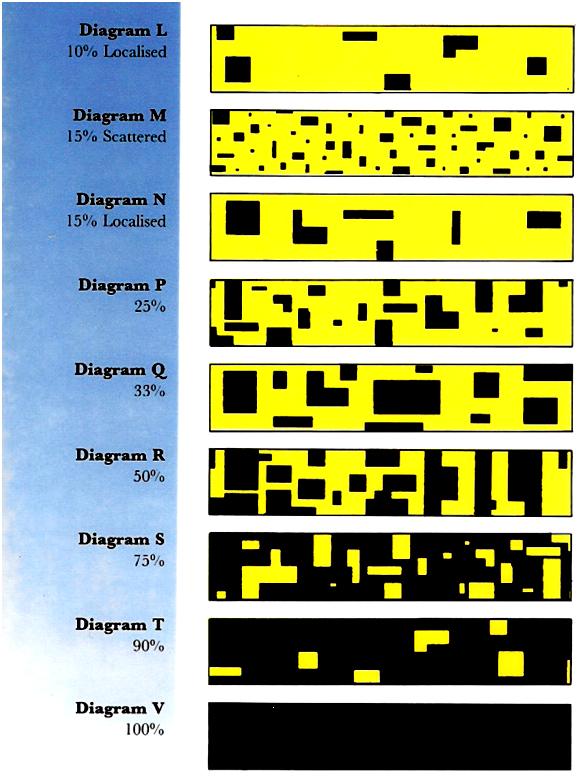

| Extent diagrams (cont...) |
 |
| Typical forms of corrosion due to mechanical damage |
 |

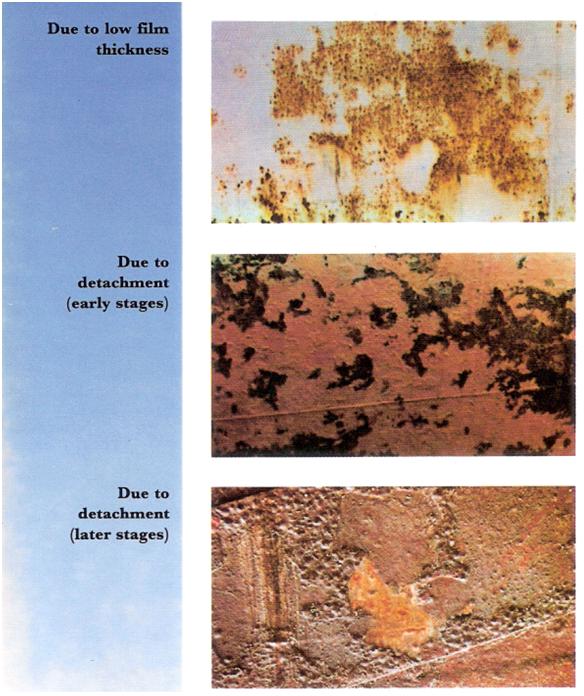

| Typical forms of corrosion due to non-mechanical causes |
 |
| Blistering |
 |
| Typical forms of cracking/crazing |
 |
| Common forms of weed fouling |
 |
| Common forms of animal fouling |
 |
| Severity of animal fouling |
